VideoTube

VT-2550C Full range of video light bar products

  • High frame rate

    While realizing the brightening effect, it can mee

  • High gray scale

    14-16bit low brightness and high gray scale to ach

  • Protection levelIP67

    Waterproof, moisture-proof, short-term immersion p

  • Super light

    0.4kg/㎡

  • High brightness

    6.5cd/dot,Experience the most authentic visual enj

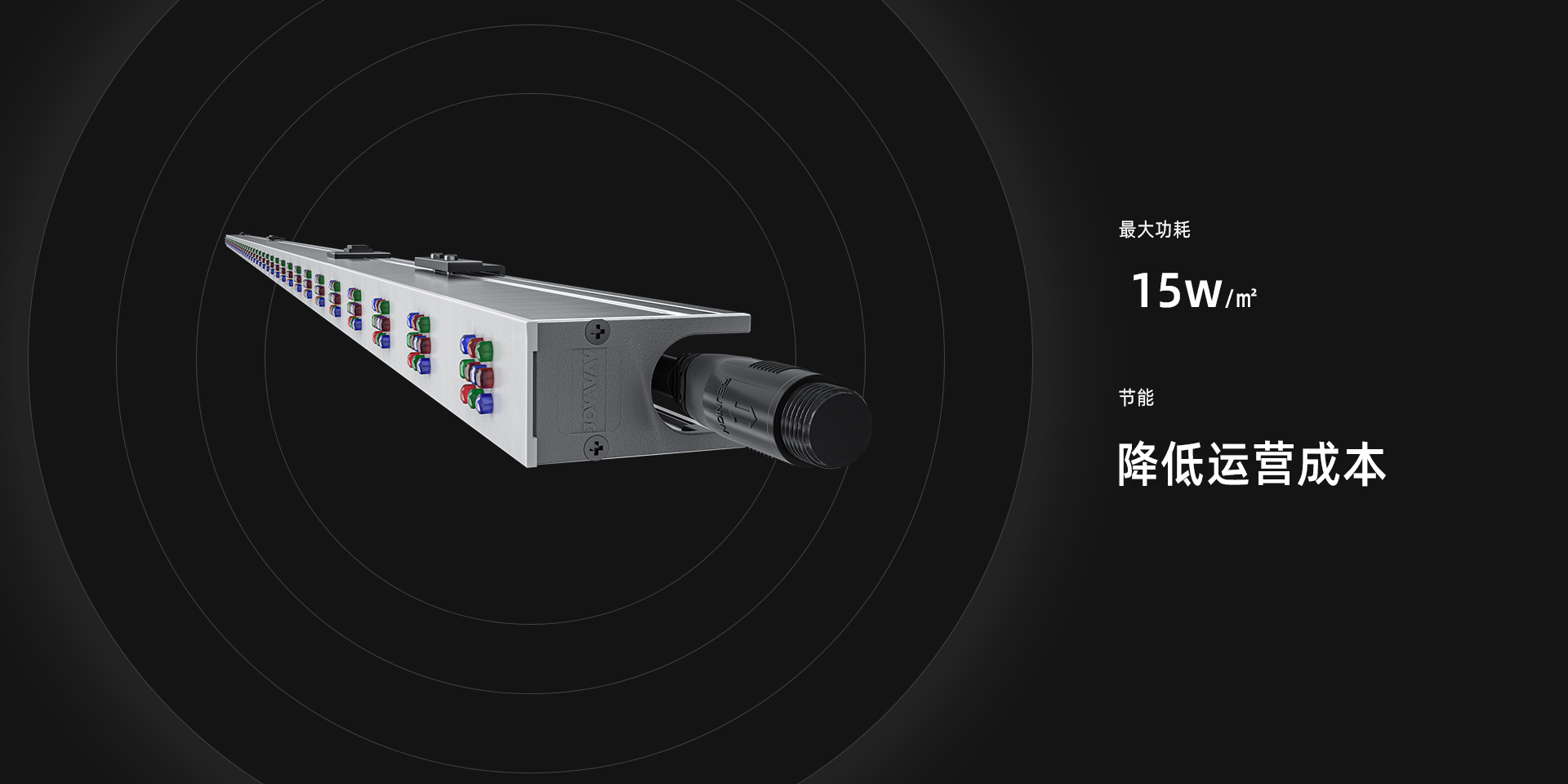

  • Low power consumption

    8-10w/㎡, energy saving, reducing operating costs

  • Simple installation

    Adapt to various types of buildings, without destr

Brightness 5000nit Normal brightness

High brightness

The application of PCB side-sleeping and side-emitting LEDs ensures that the screen's transmittance ratio is as high as 85%

Present a dreamy visual experience without affecting indoor lighting

High protection levelIP67

Waterproof, moisture-proof, cold-proof, dust-proof, and short-term immersion prevention

High transparency, large viewing angle

The application of PCB side-sleeping and side-emitting LEDs ensures that the screen's transmittance ratio is as high as 85%

Present a dreamy visual experience without affecting indoor lighting

A variety of colors can be customized freely

Ensure that the transparency rate of the screen is as high as 85% without affecting indoor lighting

As thin as

10mm

Easy to install

It can be hoisted or fixed, and there are lock con

Strong customization ability

Applicable to various structural types of shop win

Specifications

PRODUCT MODEL VT-2550C
INUT DATA SDI Data
MATERIAL AluminumBody & PC Mask(can customize the color)
LED LAMP DIP(4R3G3B),  (R≥2000mcd, G≥4000mcd, B≥900mcd,)
DIMENSIONSOF STRIP L:100mm-4000mm;W:25mm;D:42mm
STRIP PERMUTATION Horizontal| Vertical
PIXEL PITCH Internal of strip: 50mm
BRIGHTNESS 20(cd/dot)
VIEWING ANGLE (H)100˚×(V)45˚
DRIVE MODE Constant Current, PWM
INPUT VOLTAGE AC 220V,10A
MAXIMUM CONNECTION Signal: 3840 dot(60Hz),circuitbackup
POWER CONSUMPTION Max. 15-18 w/m
PROTECTION IP67
WEIGHT 1.15 kg/m
GRAY SCALE RGB32768 (3×15bit)
REFRESH RATE 3840 Hz
FRAME RATE ≥60 Hz
ENVIROMENTAL Temperature: -30℃to +60℃; Humidity: 10%-90%
CONTROL SYSTEM VF-A3
