VT-1531AB全系列视频灯条产品

  • High frame rate

    While realizing the brightening effect, it can mee

  • High gray scale

    14-16bit low brightness and high gray scale to ach

  • Protection levelIP67

    Waterproof, moisture-proof, short-term immersion p

  • Super light

    0.4kg/㎡

  • High brightness

    6.5cd/dot，Experience the most authentic visual enj

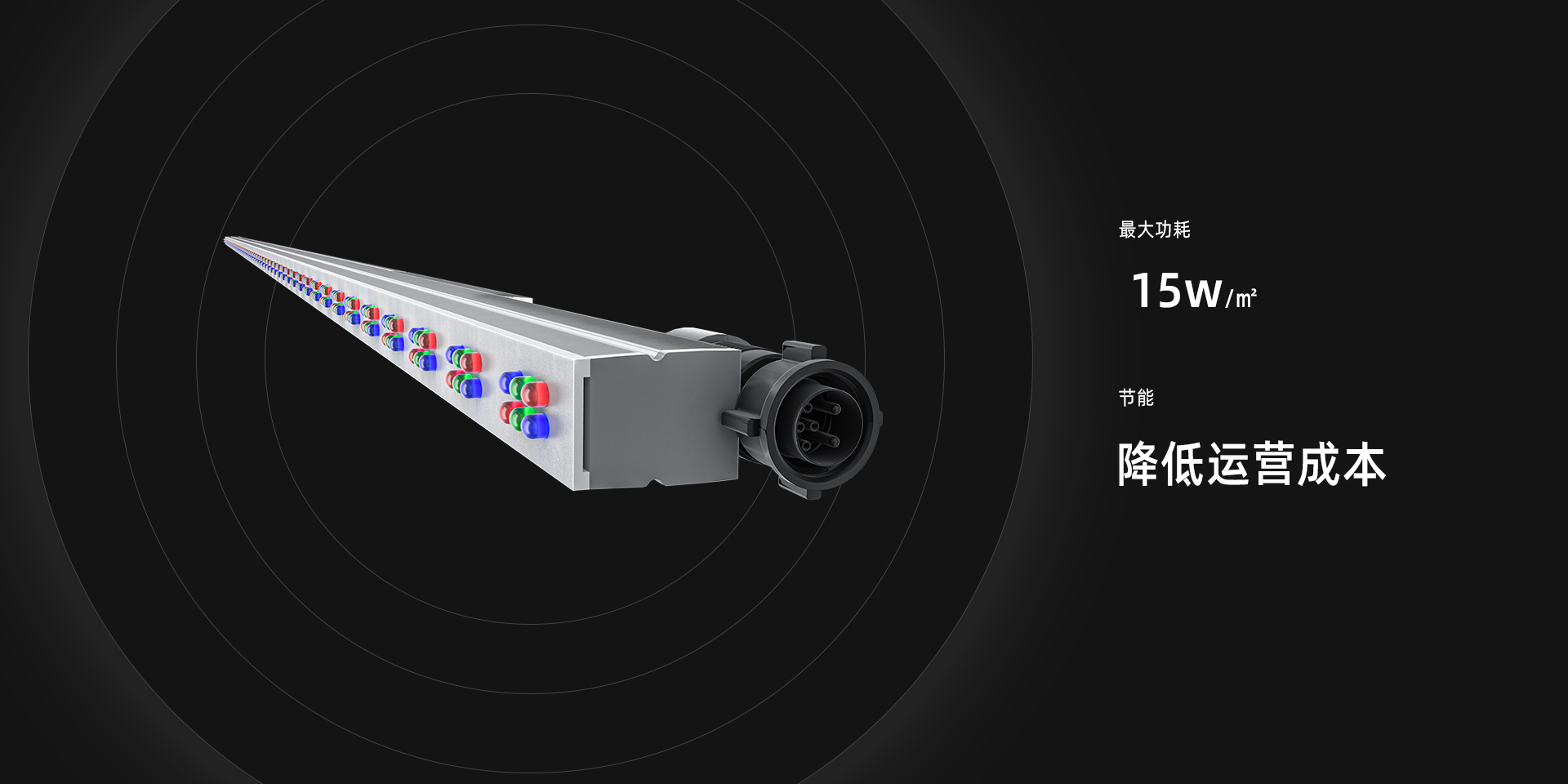

  • Low power consumption

    8-10w/㎡, energy saving, reducing operating costs

  • Simple installation

    Adapt to various types of buildings, without destr

Brightness 5000nit Normal brightness

High brightness

The application of PCB side-sleeping and side-emitting LEDs ensures that the screen's transmittance ratio is as high as 85%

Present a dreamy visual experience without affecting indoor lighting

High protection levelIP67

Waterproof, moisture-proof, cold-proof, dust-proof, and short-term immersion prevention

High transparency, large viewing angle

The application of PCB side-sleeping and side-emitting LEDs ensures that the screen's transmittance ratio is as high as 85%

Present a dreamy visual experience without affecting indoor lighting

A variety of colors can be customized freely

Ensure that the transparency rate of the screen is as high as 85% without affecting indoor lighting

As thin as

10mm

Easy to install

It can be hoisted or fixed, and there are lock con

Strong customization ability

Applicable to various structural types of shop win

Specifications

PRODUCT MODEL VT-1531A VT-1531B
INUT DATA SDI Data
MATERIAL AluminumBody & PC Mask(can customize the color)
LED LAMP DIP(1R1G1B)
(R≥2000mcd, G≥4000mcd,B≥900mcd)		 DIP(2R2G2B)
(R≥2000mcd, G≥4000mcd,B≥900mcd)
DIMENSIONSOF STRIP L：1000mm-3000mm；W：15mm；D：28mm   (Length can be customized)
STRIP PERMUTATION Horizontal| Vertical
PIXEL PITCH Internalof strip: 31.25mm
BRIGHTNESS 6.5（cd/dot) 13（cd/dot）
DRIVE MODE Constant Current, PWM
INPUT VOLTAGE DC48 V
MAXIMUM CONNECTION Signal: 3840 dot（120m）,circuitbackup
Power: DC48V/10A（≈50m）		 Signal: 3840 dot（120m）,circuitbackup
Power: Power: DC48V/10A（≈30m）
POWER CONSUMPTION Max.8-10 w/㎡ Max.16-20w/㎡
PROTECTION IP67
WEIGHT 0.65 kg/m 0.7 kg/m
GRAY SCALE RGB 32768 (3×15bit)
REFRESH RATE 3840 Hz
FRAME RATE ≥60 Hz
ENVIROMENTAL Temperature: -30℃ to +60℃; Humidity: 10%-90%
CONTROL SYSTEM VF-A2
